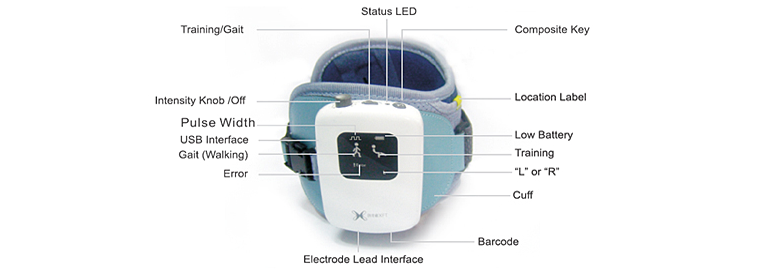

FES System India is a single channel, tilt or foot sensor switch controlled neuromuscular stimulator designed for various treatment applications (Foot drop, shoulder subluxation, sit-stand training, gait training etc) in neurological diseases like Stroke, Multiple Sclerosis, Traumatic Brain Injury or Spinal Cord Injury.


  • 1. Two modes: Gait mode and Train mode
  • 2. With clip and long electrode wire
  • 3. Self adhesive electrode pads
  • 4. Small and compact
  • 5. Easy operation (one-hand operation)
  • 6.Advanced accelerometer to analyze the movement and stimulate the appropriate nerves

  • Component

  • Components:

  • FES Stimulator: 1pc

  • Cuff: 1pc

  • Foot Sensor: 1pc

  • Electrode wires: 2pcs

  • Electrode pads: 20pairs

  • Portable box: 1pc

  • USB recharger (for foot sensor and stim unit): 1pc

  • Foot Sensor: 1pc

  • Electrode pads: 20pairs


Specification :

People who experience upper motor neuron injuries or conditions such as:
Product Name : FES System India
Classification : Type BF Equipment
Size : 99mm (H) x 65mm (W) x 20mm (T)
Traumatic Brain Injury (TBI)
Weight : 50g
Power supply : Two 1.5 V Alkaline AAA batteries
Maximum current : 150 mA
Shipping and Storage Conditions : Transport and storage temperature: -20~55°C Operating conditions temperature: 5~40°C Humidity:
80% max., non-condensing Atmospheric pressure: 70 KPa to 106 KPa
